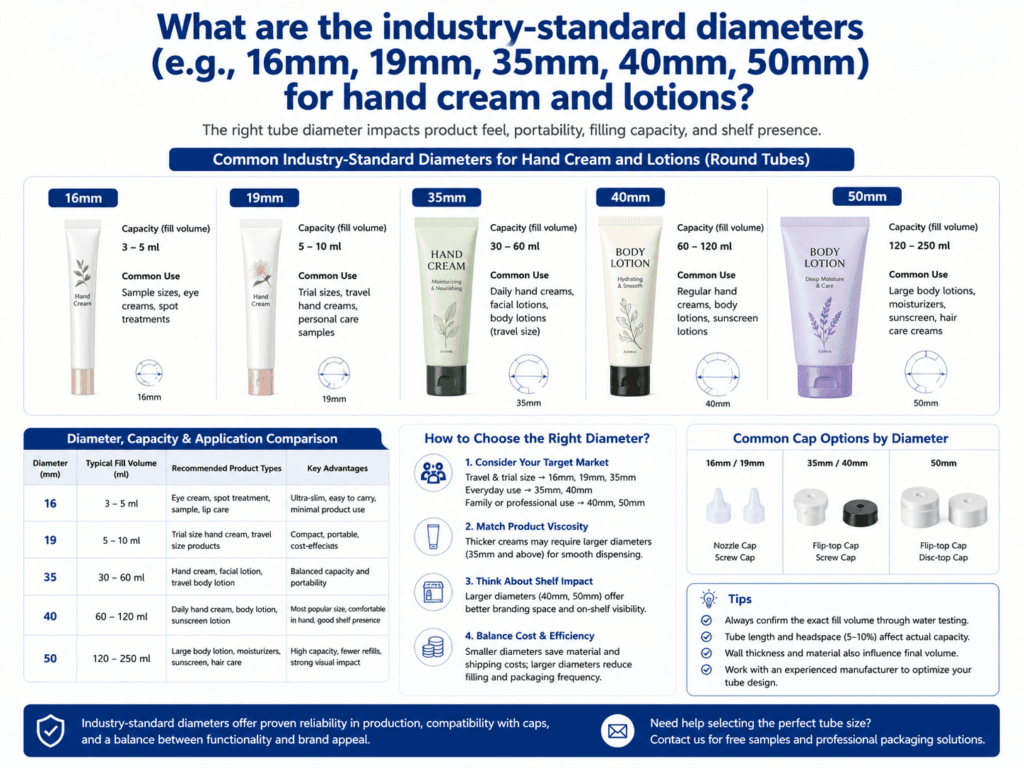

Industry-standard cosmetic tube diameters for hand cream and lotions commonly include 16mm, 19mm, 22mm, 25mm, 30mm, 35mm, 40mm, and 50mm. Among these, 30mm to 35mm are widely used for hand cream, while 40mm to 50mm are more common for body lotion, moisturizer, and larger skincare products.
The right tube diameter depends on the filling volume, formula viscosity, cap style, shelf positioning, hand feel, and brand image. A smaller diameter creates a slim and portable look, while a larger diameter gives more capacity, easier squeezing, and a stronger retail shelf presence.
Common Tube Diameters for Hand Cream and Lotions
| Tube Diameter | Typical Capacity Range | Common Application | Packaging Character |
|---|---|---|---|
| 16mm | 3ml – 10ml | Samples, eye cream, small trial-size products | Very slim, portable, limited decoration area |
| 19mm | 5ml – 15ml | Mini hand cream, travel-size skincare, sample tubes | Compact and lightweight |
| 22mm | 10ml – 25ml | Travel hand cream, hotel amenity lotion, mini cream | Small but more practical than 16mm or 19mm |
| 25mm | 20ml – 40ml | Small hand cream, portable lotion, promotional skincare | Good balance of portability and usability |
| 30mm | 30ml – 60ml | Standard hand cream, facial cream, travel lotion | Popular retail size with better front design area |
| 35mm | 50ml – 100ml | Hand cream, sunscreen, moisturizer, medium lotion | One of the most versatile cosmetic tube diameters |
| 40mm | 80ml – 150ml | Body lotion, face wash, sunscreen, hair care | Better squeezing comfort and stronger shelf presence |
| 50mm | 150ml – 250ml+ | Large body lotion, shampoo, conditioner, family-size skincare | High capacity, strong display impact, suitable for larger formulas |
Best Diameter for Hand Cream Tubes
For hand cream, the most common diameters are usually 25mm, 30mm, and 35mm. Small portable hand creams often use 25mm or 30mm tubes, while retail-size hand creams and premium creams often use 35mm tubes because they provide a better front panel for branding and a more comfortable grip.
| Hand Cream Size | Recommended Diameter | Why It Works |
|---|---|---|
| Mini / sample hand cream | 19mm – 22mm | Compact, low material usage, suitable for giveaways |
| Travel hand cream | 25mm – 30mm | Portable but still easy to squeeze |
| Standard retail hand cream | 30mm – 35mm | Balanced capacity, hand feel, and decoration area |
| Premium hand cream | 35mm | Better shelf appearance and more luxury packaging feel |
Best Diameter for Lotion Tubes
For lotions, the most common diameters are usually 35mm, 40mm, and 50mm. Lotion formulas are often filled in higher volumes than hand cream, so wider tubes make the product easier to squeeze and improve the visual balance of the package.
| Lotion Size | Recommended Diameter | Why It Works |
|---|---|---|
| Travel-size lotion | 25mm – 35mm | Portable and suitable for hotel or amenity packaging |
| Medium body lotion | 35mm – 40mm | Good balance of capacity and squeezing comfort |
| Retail body lotion | 40mm – 50mm | Better front-facing area and more comfortable dispensing |
| Large lotion or family-size product | 50mm+ | Suitable for higher fill volume and stronger shelf presence |
How Diameter Affects Tube Length
Tube diameter and tube length work together. If the diameter is smaller, the tube usually needs to be longer to hold the same fill volume. If the diameter is larger, the tube can be shorter while still holding the same amount of formula. This is why two 100ml tubes may look very different: one can be slim and tall, while another can be wider and shorter.
- Smaller diameter: Slimmer look, more portable, but longer body needed for the same capacity.
- Larger diameter: Shorter body possible, easier squeezing, larger branding area.
- Very narrow tubes: May not be ideal for thick lotions or dense creams.
- Very wide tubes: Better for high-volume products but may feel less portable.
Choosing Diameter by Formula Viscosity
| Formula Type | Recommended Direction | Reason |
|---|---|---|
| Light lotion | 25mm – 40mm | Flows easily, can work in smaller or medium diameters |
| Medium hand cream | 30mm – 35mm | Good balance between squeeze feel and portability |
| Thick cream or balm-like texture | 35mm – 40mm | Wider tube improves squeezing comfort |
| Large body lotion | 40mm – 50mm | Supports larger capacity and easier dispensing |
Choosing Diameter by Brand Positioning
| Brand Goal | Better Diameter Choice | Packaging Impression |
|---|---|---|
| Sample or promotional use | 16mm – 22mm | Small, economical, easy to distribute |
| Travel-friendly skincare | 22mm – 30mm | Portable and convenient |
| Daily retail hand cream | 30mm – 35mm | Balanced and familiar to consumers |
| Premium skincare or lotion | 35mm – 40mm | More elegant and substantial |
| Large body care product | 40mm – 50mm | Higher capacity and stronger shelf impact |
Common Diameter Mistakes
- Choosing too small a diameter for thick formulas: The product may become difficult to squeeze out.
- Choosing too large a diameter for a small fill volume: The tube may look underfilled or visually unbalanced.
- Ignoring decoration area: Small diameters have less space for logos, claims, and ingredient highlights.
- Only copying competitor sizes: The same diameter may not fit your formula density, cap style, or brand positioning.
- Not testing filled samples: Real filling and squeezing tests are still needed before mass production.
Best Practical Recommendation
For hand cream, start with 30mm or 35mm as the main retail-size options. For body lotion, start with 40mm or 50mm if the fill volume is higher than standard hand cream sizes. For samples, travel-size products, and hotel amenities, smaller diameters such as 16mm, 19mm, 22mm, or 25mm may be more suitable.
Summary
Industry-standard tube diameters for hand cream and lotions commonly range from 16mm to 50mm. Small diameters such as 16mm and 19mm are best for samples and mini tubes. Medium diameters such as 25mm, 30mm, and 35mm are common for hand cream and portable skincare. Larger diameters such as 40mm and 50mm are better for lotions, body care, sunscreen, shampoo, and other larger-capacity products.
The best diameter should be selected based on fill volume, formula viscosity, tube length, cap style, branding area, shelf appearance, and consumer usability.
